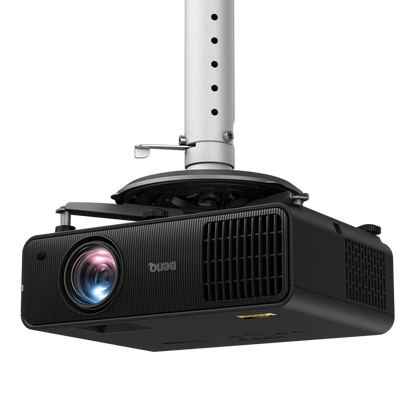

BenQ AH30ST 3000 Lumen Short Throw 1080P LED Golf Simulator Projector

The BenQ AH30ST is a compact short throw LED projector designed specifically for indoor golf simulator environments where space, safety, and image accuracy are critical. Its short throw design allows the projector to be positioned safely behind the golfer, reducing shadows and minimising the risk of contact in confined simulator rooms while still delivering a large, immersive image.

Featuring a long-life LED light source and BenQ’s dedicated Golf Mode, the AH30ST delivers consistent brightness and colour performance tailored to accurately represent fairways, greens, and course terrain. Installation is simplified through a low projection offset and BenQ’s Screen Fill technology, which automatically adjusts the image to match common simulator aspect ratios without complex manual setup.

With a sealed, filter-free design and optional wireless connectivity, the AH30ST offers a reliable, low-maintenance projection solution for home and studio golf simulator setups.

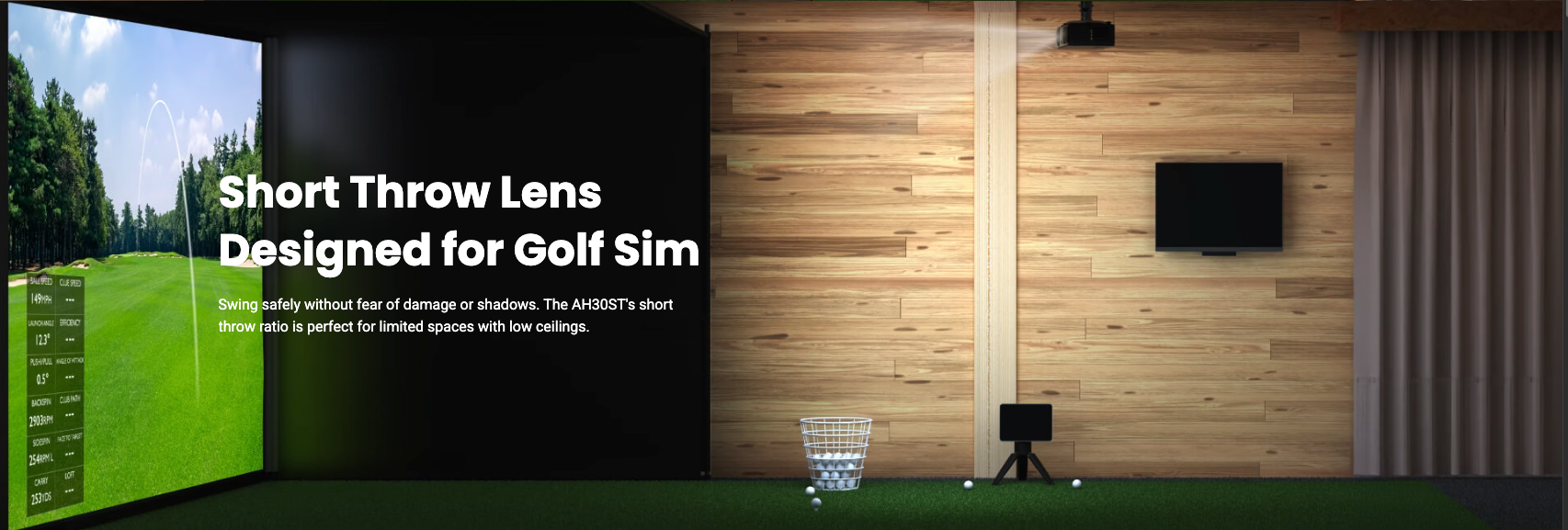

• Safe short-throw projection for confined simulator spaces
  Short throw design allows placement behind the golfer, reducing shadows on the impact screen and minimising collision risk in rooms with limited depth or low ceilings.

• Dedicated Golf Mode for realistic course visuals
  BenQ’s exclusive Golf Mode is tuned to enhance colour accuracy for greens, fairways, and terrain detail, improving realism during practice and play.

• Automatic Screen Fill technology
  Automatically detects and adjusts to common simulator aspect ratios including 1:1, 4:3, 16:9, and 16:10, ensuring the projected image fills the impact screen correctly without manual resizing.

• Flexible wireless projection option
  Optional EZC-5201BS wireless dongle enables 1080p wireless projection, reducing cable clutter and allowing greater flexibility in simulator layout.

• Low projection offset for simpler installation
  A low 102.5% offset helps achieve proper image placement with minimal keystone correction, supporting cleaner geometry when ceiling or rear mounted.

• Dustproof, filter-free optical design
  Sealed construction eliminates the need for filters, reducing maintenance requirements and improving reliability in garage and basement environments.

• Long-life LED light source
  LED illumination provides consistent brightness and colour performance with up to 30,000 hours of operation in Eco mode, eliminating lamp replacements.

• Energy-efficient operation
  Designed for lower power consumption compared to traditional lamp-based projectors, supporting extended simulator use with reduced operating costs.

• Built for reliable simulator use
  Engineered for durability and consistent performance, making it suitable for frequent home practice and light commercial golf simulator installations.

• BenQ AH30ST Projector
• Remote Control with Battery (RCX016)
• Power Cord (1.8M)
• Quick Start Guide
• Warranty Card
• Lens Cover

Display

• Projection System : DLP
• Brightness : 3000 ANSI lumens
• Native Resolution : 1080p (1920 × 1080)
• Native Aspect Ratio : 16:9
• Selectable Aspect Ratios : 1:1, 4:3, 16:9, 16:10
• Contrast Ratio : 20,000:1 (FOFO)
• Display Colour : 30-bit (1.07 billion colours)

Light Source

• Light Source Type : 4LED
• Light Source Life (Normal) : Up to 20,000 hours
• Light Source Life (Eco) : Up to 30,000 hours

Optical

• Throw Ratio : 0.69 – 0.83
• Zoom Ratio : 1.2x
• Lens : F/2.6 – 2.78, f = 10.2 – 12.24 mm
• Projection Offset : 102.5% (full height)
• Keystone Correction :
• Vertical ±30°
• Horizontal ±30°

Picture & Colour

• Rec.709 Coverage : 95%
• Picture Modes : 3D, Bright, Cinema, Game, Golf, sRGB, User 1, User 2

Connectivity

• HDMI Inputs : 2 × HDMI (1.4a / HDCP 1.4)
• USB :
• USB Type-A (power supply)
• USB Type-A (wireless dongle support)
• Control : RS-232 (DB-9)

Audio

• Built-in Speaker : 10W
• Audio Output : 3.5 mm mini jack

Power & Environment

• Power Supply : AC 100–240V, 50/60Hz
• Power Consumption : 237W (110V)
• Standby Power Consumption : <0.5W
• Operating Temperature : 0°C – 40°C
• Acoustic Noise : 32 dBA (Normal) / 28 dBA (Eco)

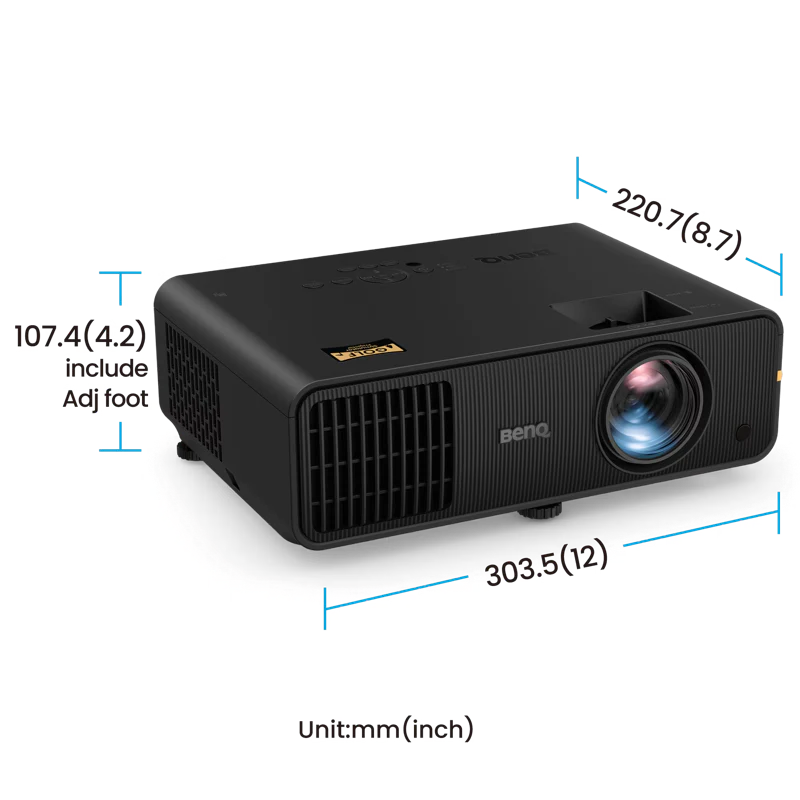

Dimensions & Weight

• Dimensions (W × H × D) : 303.5 × 107.4 × 220.7 mm
• Weight : 2.65 kg (5.84 lbs)

User Guide / Manual :

• BenQ AH30ST User Manual
• BenQ AH30ST Quick Start Guide
