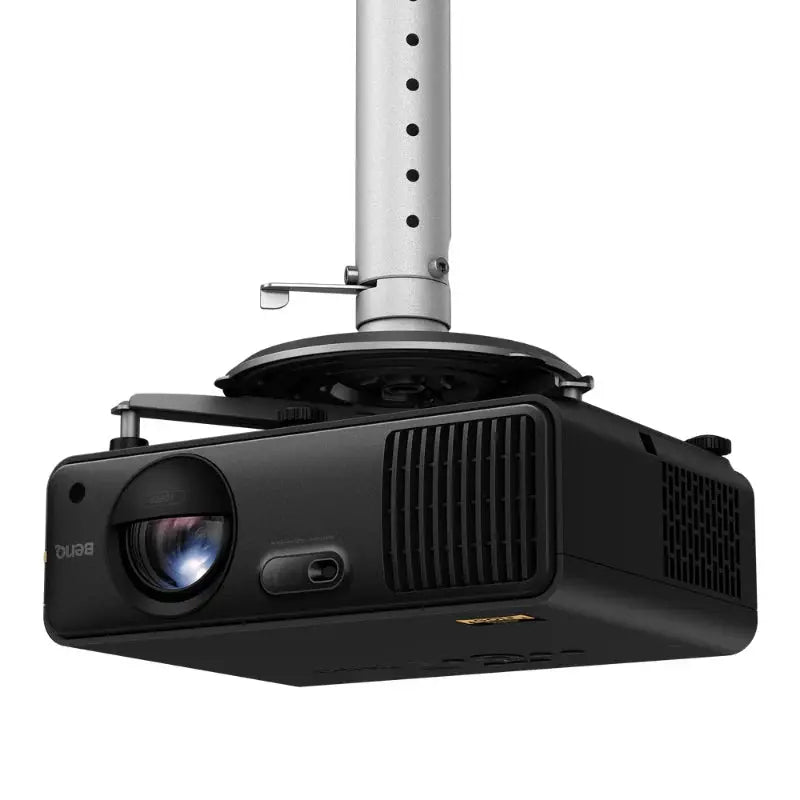

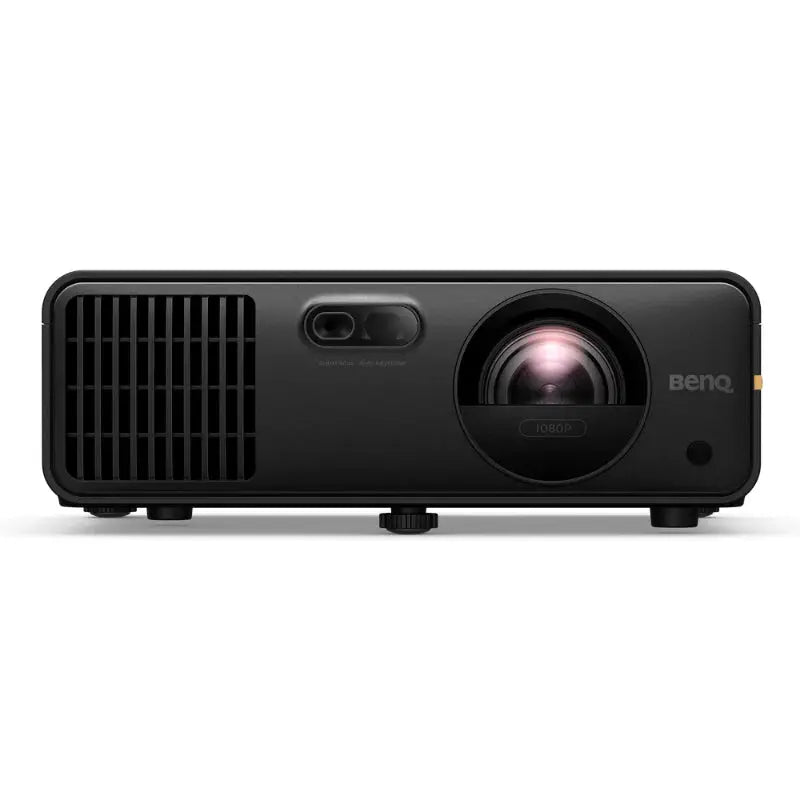

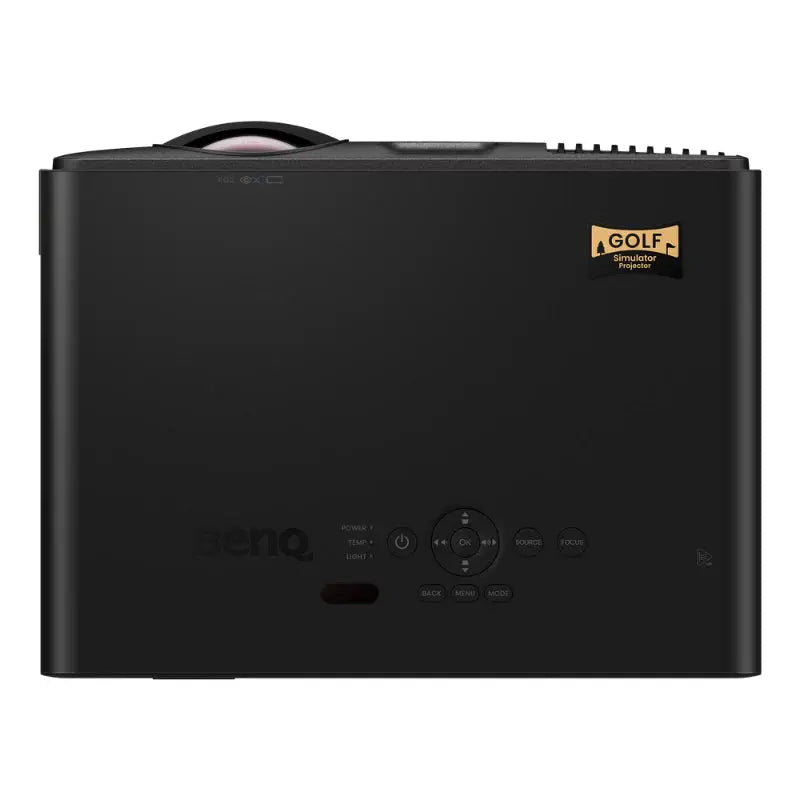

BenQ AH700ST 4000-Lumen Short Throw 1080P Laser Golf Simulator Projector

The BenQ AH700ST is a purpose-built short throw laser projector designed specifically for golf simulator environments. Delivering 4,000 ANSI lumens of brightness and Full HD 1080p resolution, it produces sharp, vibrant visuals even in well-lit rooms — perfect for garages, studios, and commercial simulator bays.

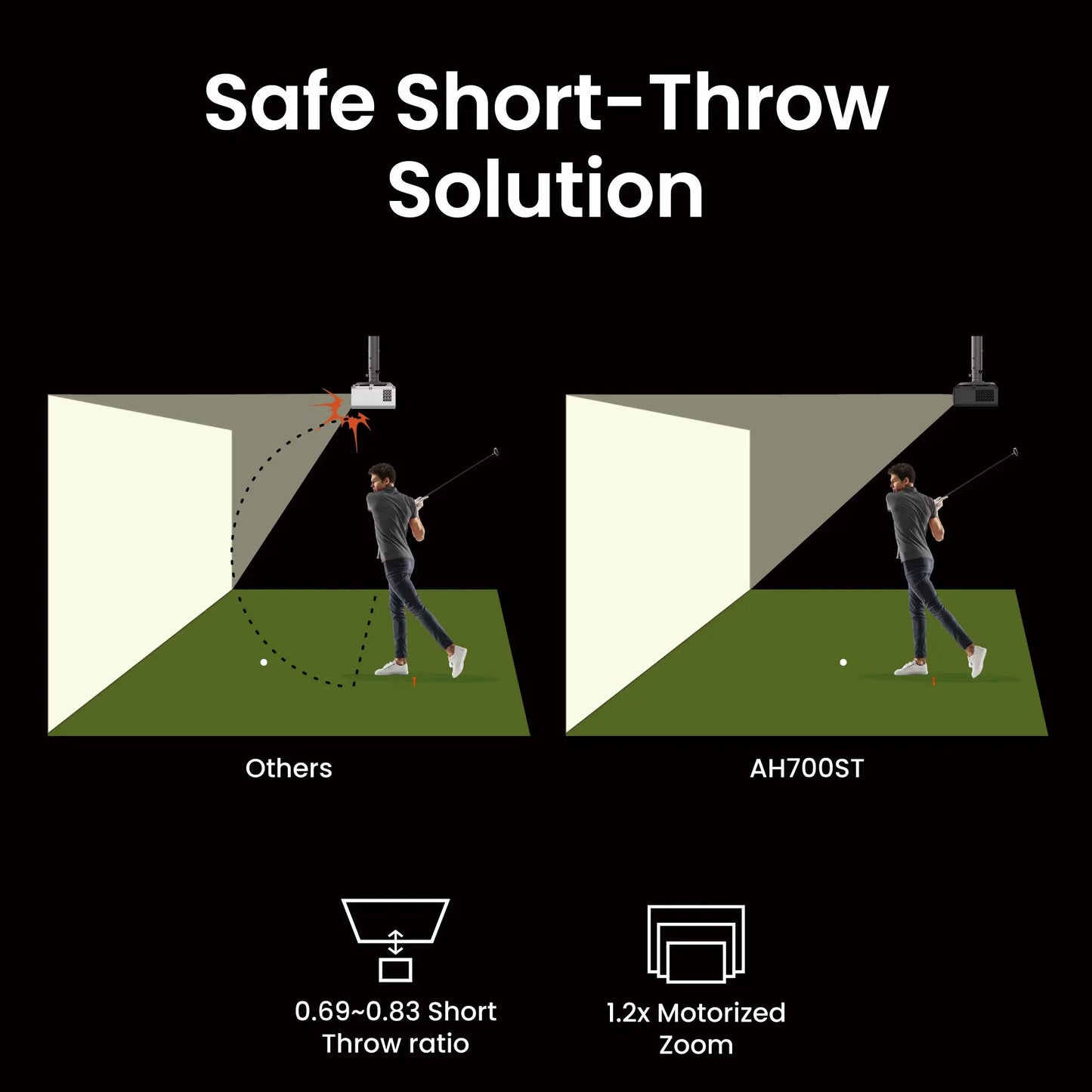

With its 0.69–0.83 short throw ratio, the AH700ST can project a large, immersive image from a short distance, keeping the projector safely out of the swing path and eliminating shadows. The laser light source provides up to 20,000 hours of maintenance-free operation, so there are no lamps to replace and no drop-off in brightness over time.

BenQ’s dedicated Golf Mode is tuned specifically for realistic turf, sky, and course colours, while features like Auto Screen Fit and Corner Fit make setup fast and simple — even in tight spaces or custom enclosures.

Key Features:

• Full HD 1080p Resolution – Crisp, detailed course visuals
• 4,000 ANSI Lumens Brightness – Clear image even with ambient light
• Short Throw Lens (0.69–0.83) – Large image from close range, shadow-free hitting
• Laser Light Source – Up to 20,000 hours, zero maintenance
• Dedicated Golf Mode – Optimised colours for realistic course rendering
• Auto Screen Fit & Corner Fit – Easy alignment on impact screens
• Designed for Simulator Use – Perfect for home and commercial setups

Ideal For:

• Home golf simulators
• Garage and basement installs
• Commercial simulator studios
• Tight spaces where standard throw projectors won’t work

The BenQ AH700ST is a top-tier choice for golfers who want reliability, brightness, and true-to-life visuals in a compact, simulator-optimised package.

• BenQ AH700ST: x1
• Remote Control With Batteries: x1
• Power Cord: x1
• Quick Start Guide: x1
• Warranty Card: x1

Display:

• Brightness (ANSI lumens): 4000
• Native Resolution: 1080P (1920x1080)
• Native Aspect Ratio: 16:9
• Selectable Aspect Ratios: 16:9, 16:10, 4:3, 1:1
• Light Source: Laser
• Light Source Life: Normal: 20,000 hrs

Optical:

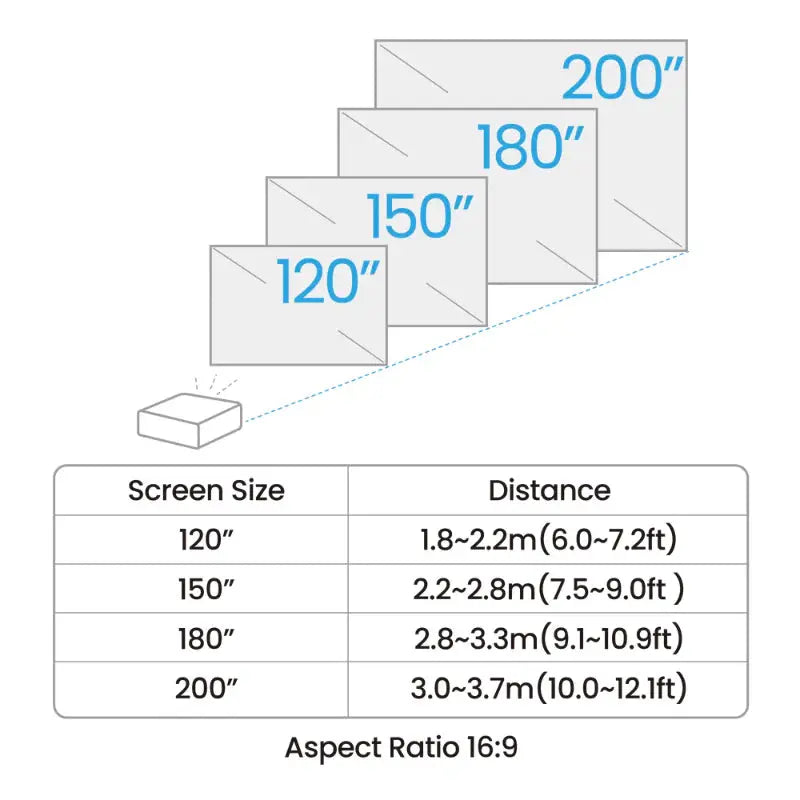

• Throw Ratio: 0.69~0.83
• Zoom Ratio: 1.2x
• Projection Offset (Full-Height): 102.50%
• Keystone Adjustment: Vertical ± 20 degrees; Horizontal ± 20 degrees
• Corner Fit: Yes
• Lens Shift Vertical: N/A
• Lens Shift Horizontal: N/A

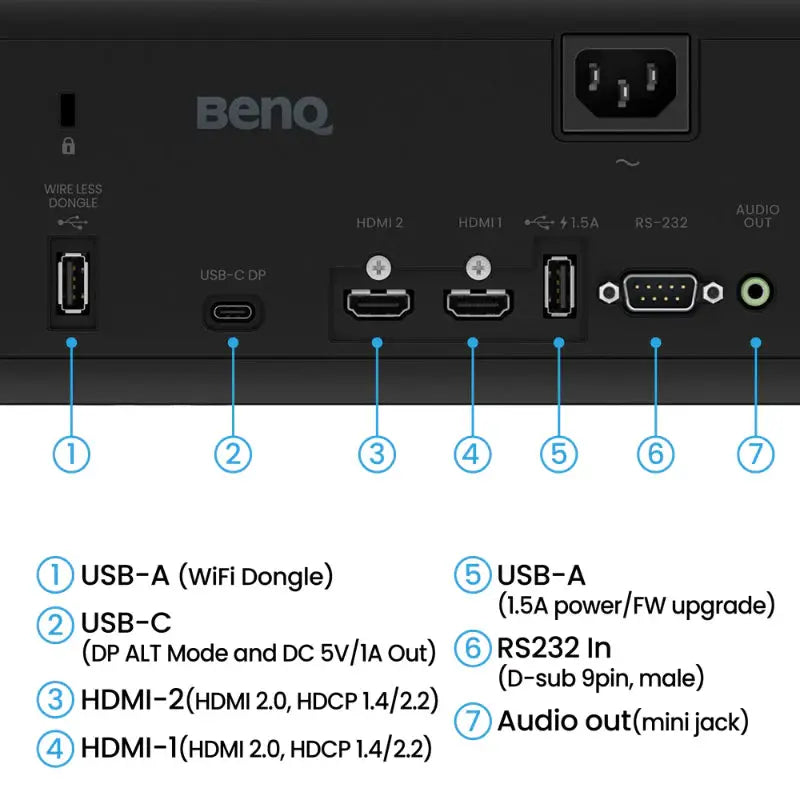

I/O Interface:

• HDMI in: (x2), HDMI (2.0b/HDCP2.2)x1, HDMI-2 (2.0b/HDCP2.2)x1

Dimension & Weight:

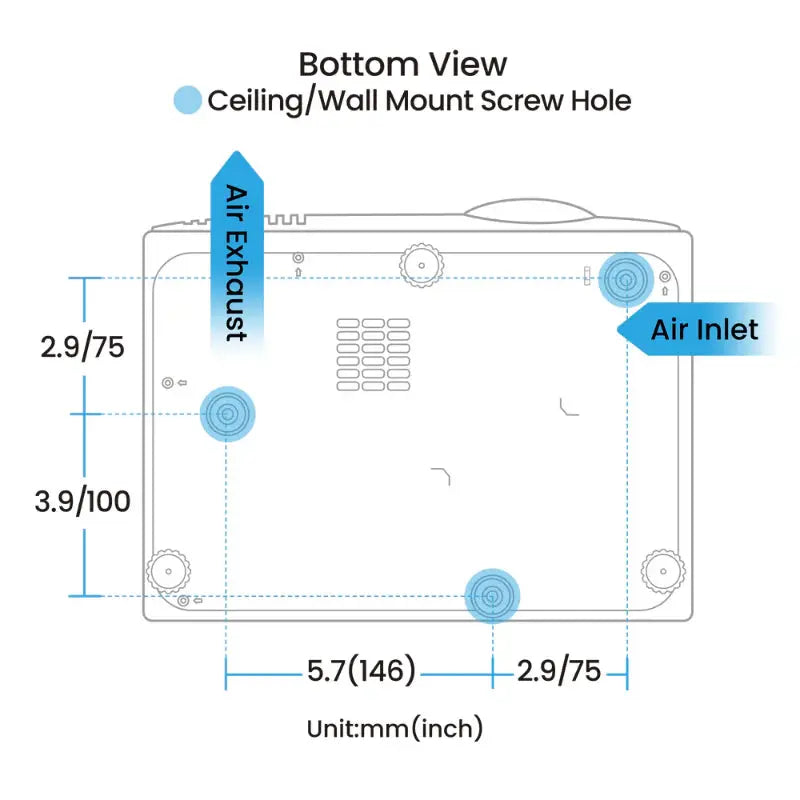

• Dimensions (WxHxD) (mm): 303.5 x 112.4 x 234.5 | (in): 11.94" x 4.42" x 9.23"
• Net Weight (kg): 3.3 | (lbs): 7.27

Resources:
BenQ AH700ST User Manual
