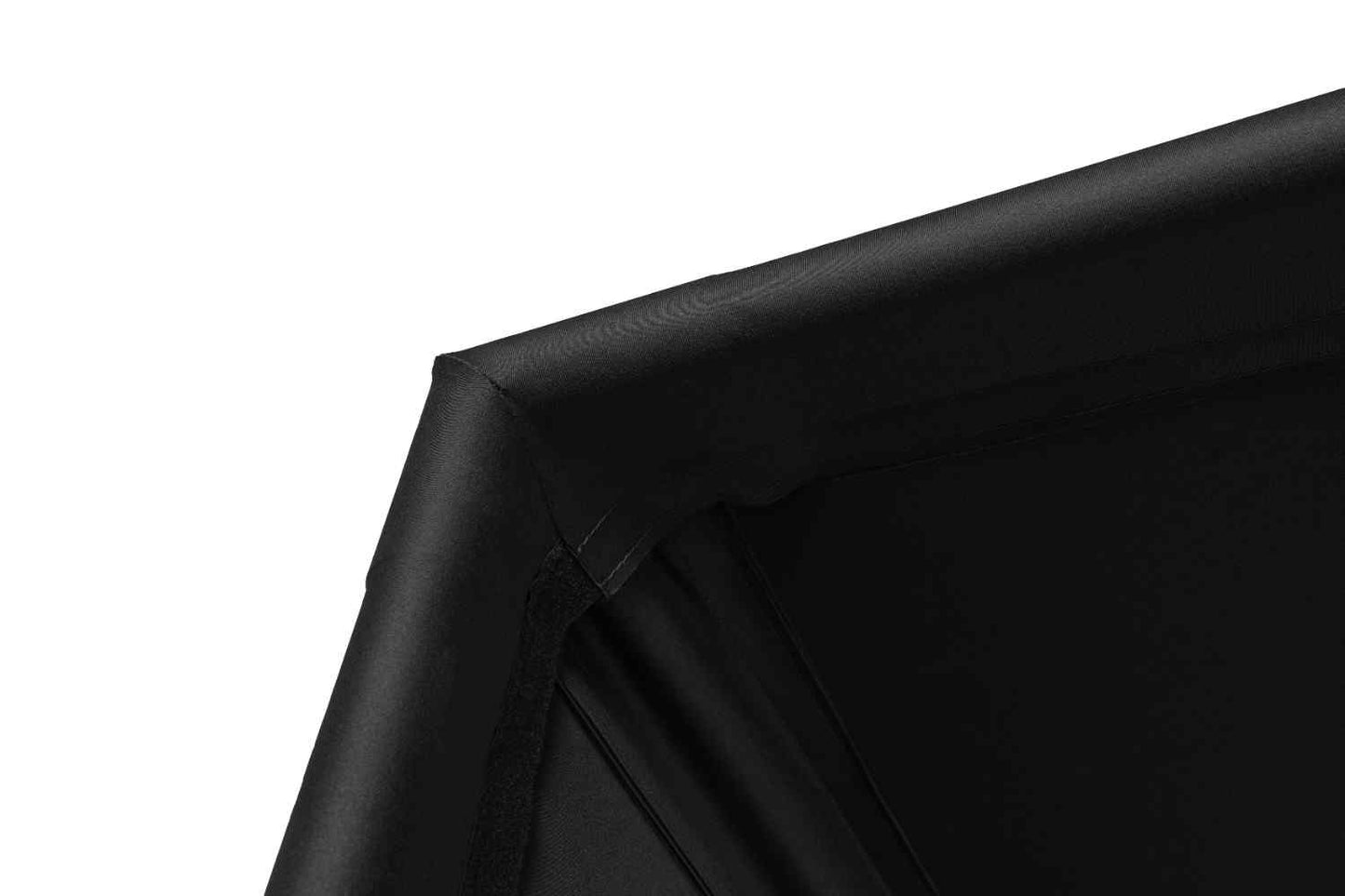

• BlackStop™ Knit Enclosure – Light-absorbing fabric for vivid colors and reduced glare.
• Foam Inserts – Shield frame from ricochets and minimize noise and rebound.
• Detachable Flaps – Wider hook-and-loop strips for a clean, secure fit.
• One-Piece Ceiling & Sidewalls – Faster, easier assembly (~2 hours).
• Reduced Bounceback System – Three-layer screen and tensioned bottom cable for safety and accuracy.
• Movable Ceiling Crossbar (Optional) – Adjustable for projectors, lights, or launch monitors.
• Pipe Framing Kit Option – Pre-cut labeled pipes for plug-and-play setup.
• Back Cover & Safety Baffles (Optional) – Enhance image quality and safety in commercial settings.

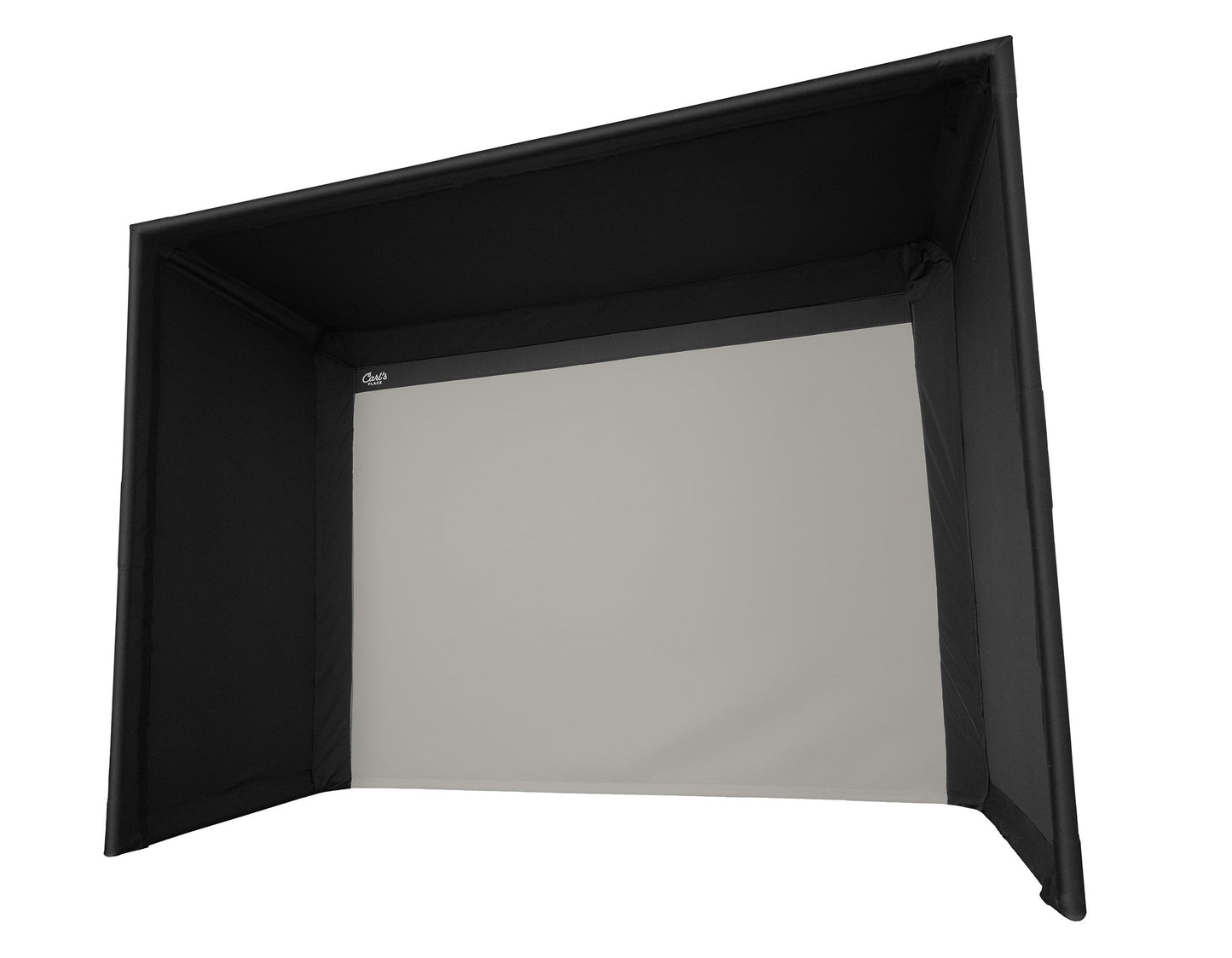

• Premium Golf Impact Screen Material

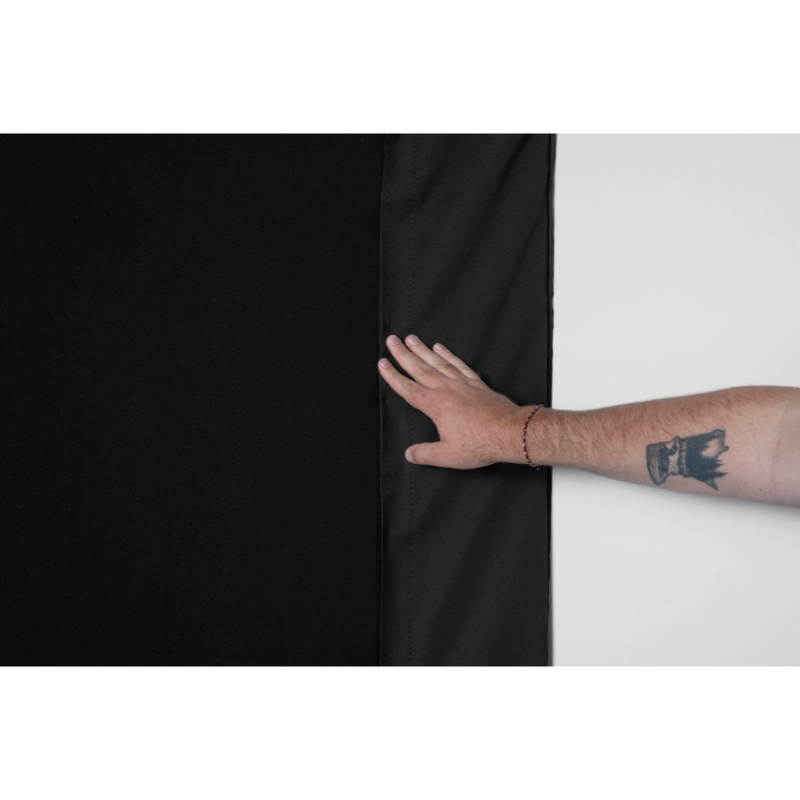

• BlackStop™ Knit Enclosure

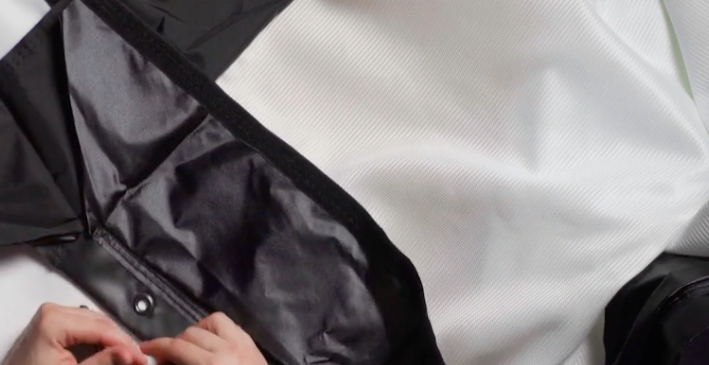

• Detachable Flaps with Wider Hook-and-Loop Fasteners

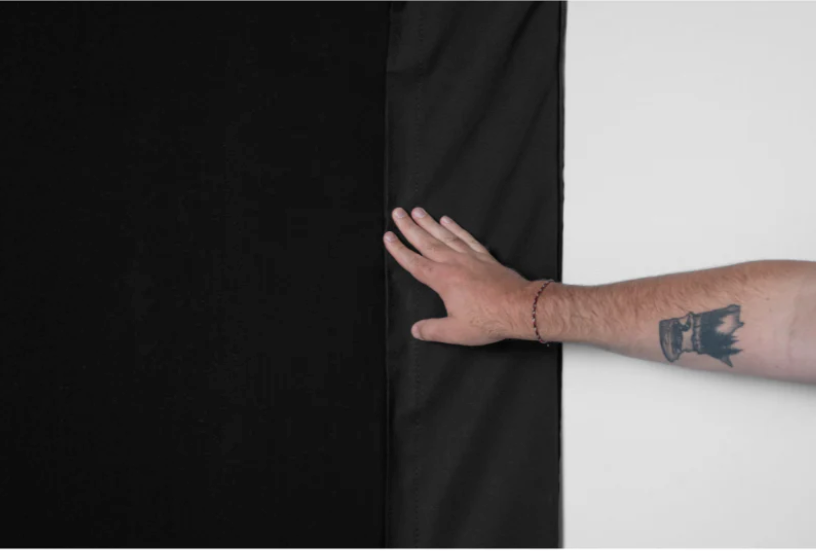

• Foam Inserts for Frame Protection

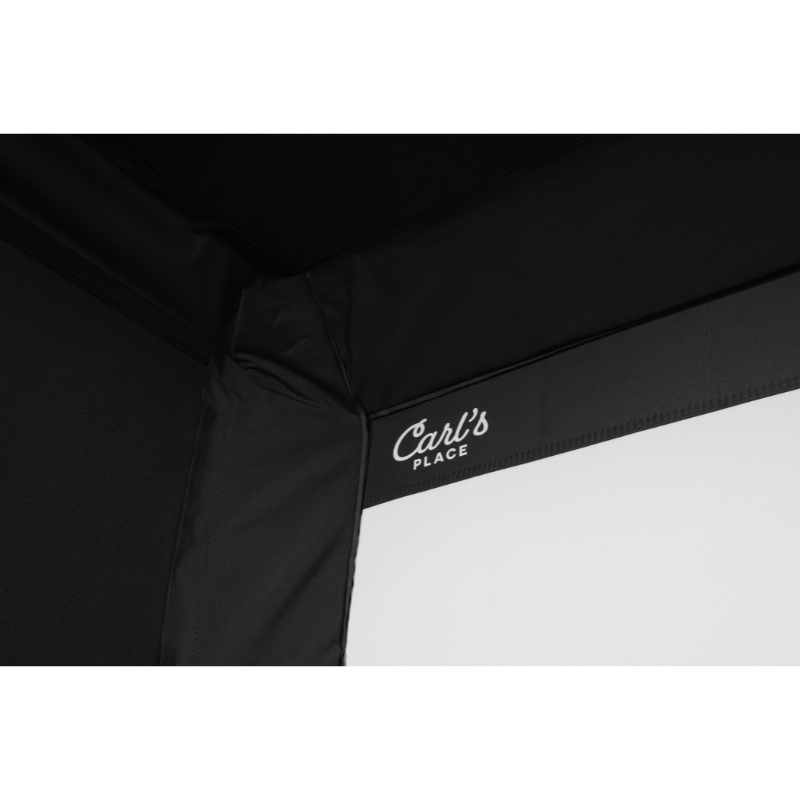

• One-Piece Wraparound Ceiling & Sidewalls
• Steel Fittings and Elbows
• Ball Bungees and Releasable Zip Ties
• Bottom Cable with Springs and Cable Receivers
• Hardware & Instruction Pack


Add-ons (Accessories)

1. Pipe Framing Kit
Pre-cut and labeled 2" EMT pipes for a precise, quick assembly. Required to complete the enclosure frame (if not sourcing locally).

2. Safety Baffles
Protect overhead areas from high-angle shots and prevent rebounds off the screen.

3. Back Cover Kit & Pipe Kit
Blocks rear light for improved projection quality and a polished finish. Pipe kit provides all necessary framing.

4. Movable Ceiling Crossbar
Adjustable bar for optimal projector or launch monitor placement, future-proofing your setup.

• Available Depths: 5’, 8’, 10’, 15’
• Ceiling Buffer Space: 6–7" recommended
• Side Clearance: 2–3" each side
• Rear Clearance: 9.5" minimum
• Frame Material: 2" EMT (O.D. 2.197"/55.8 mm)
• Assembly Time: Approx. 2 hours with one-piece cover
• Screen: Three-layer premium impact material
• Optional Crossbar: Adjustable; for 15′ enclosures, positioned ~7.5′ from screen

• Assembly Manual: Pro Golf Enclosure Kit (2025 Model)
• Specifications Sheet: Full Pro Kit Specs

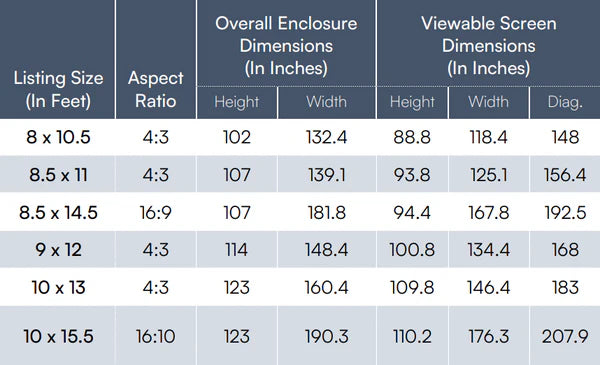

• Cut Sheets: Available for all enclosure sizes (8’–10’H, 10.5’–15.5’W, 5’–15’D), at request.
• Back Cover Kit Cut Sheets: For all corresponding sizes, available at request.

❓ Frequently Asked Questions

1. How far should I stand from the impact screen?
For best performance and safety, stand 10–12 feet from the screen. This provides optimal ball flight tracking and helps extend the life of your impact screen.

2. Can I use any golf mat with this enclosure?
Yes — any high-quality hitting mat will work. We recommend mats between 4′×5′ and 4′×9′, depending on your stance width and whether you need both right- and left-handed play.

3. What’s the main difference between the DIY and Pro enclosures?
The DIY Kit is perfect for home setups and golfers who want an affordable entry-level system.

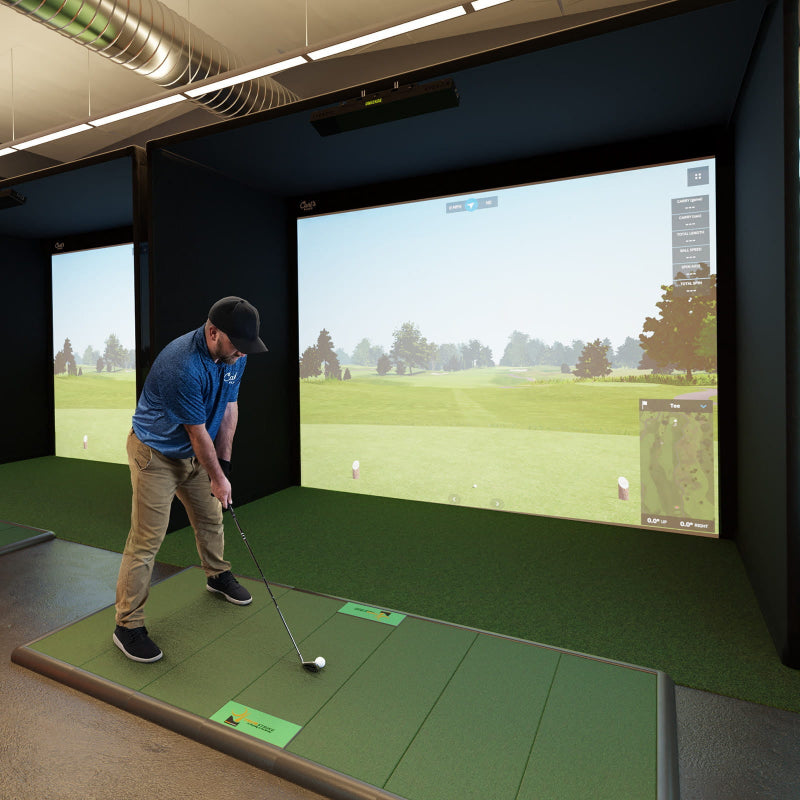

The Pro Enclosure is built for commercial or high-end home installations — with a sturdier frame, light-absorbing materials, and optional safety and lighting upgrades.

4. How do I mount my projector correctly?
Projector placement depends on your room size and throw ratio. You can ceiling-mount, frame-mount, or even floor-mount with a protective cover.

👉 For precise distance and alignment, use the BenQ Projector Calculator or ProjectorCentral.com.

5. What are EMT pipes, and do I need to buy them separately?
“EMT” stands for Electrical Metal Tubing, the same metal used in conduit systems. The Pro Enclosure requires 2″ EMT (actual 2.197″ outer diameter).
You can either purchase the pre-cut Carl’s Place Pipe Framing Kit or source EMT locally using the provided cut sheet.

6. Does the kit come with the framing pipes?
No, the standard kit includes fittings and connectors, but not the pipes. If you prefer a ready-to-assemble solution, select the Pipe Framing Kit add-on.

7. What if the enclosure material gets hit by a golf ball?
The black sidewalls and ceiling are not designed for direct impact, but occasional rebounds from the impact screen are perfectly fine and won’t cause damage.

8. Can I steam or iron my impact screen to remove wrinkles?
Avoid ironing — the heat can damage the fibers. Instead, tension the screen tightly during setup and allow it to relax for a few days.

For minor wrinkles, use a consumer-grade steamer with distilled water to smooth the surface safely.

9. How long does assembly take?

Most users complete installation in about two hours with the new 2025 one-piece wraparound design. For larger bays, having an extra set of hands helps speed things up.

10. What clearance should I allow around the enclosure?
Allow 6–7″ above for ceiling clearance and 2–3″ on each side for proper tensioning. You’ll also need around 10″ behind the enclosure for fittings and cable management.

11. Are there replacement screens available?
Yes — replacement screens and spare parts are available directly through My Golf Direct or Carl’s Place.

12. How do the ball bungees work?
Simply thread the looped end through the grommet, pull until the ball touches the screen, wrap around the pipe frame, and hook the loop over the ball to secure.
